raspberryPi + SSD1351 +python

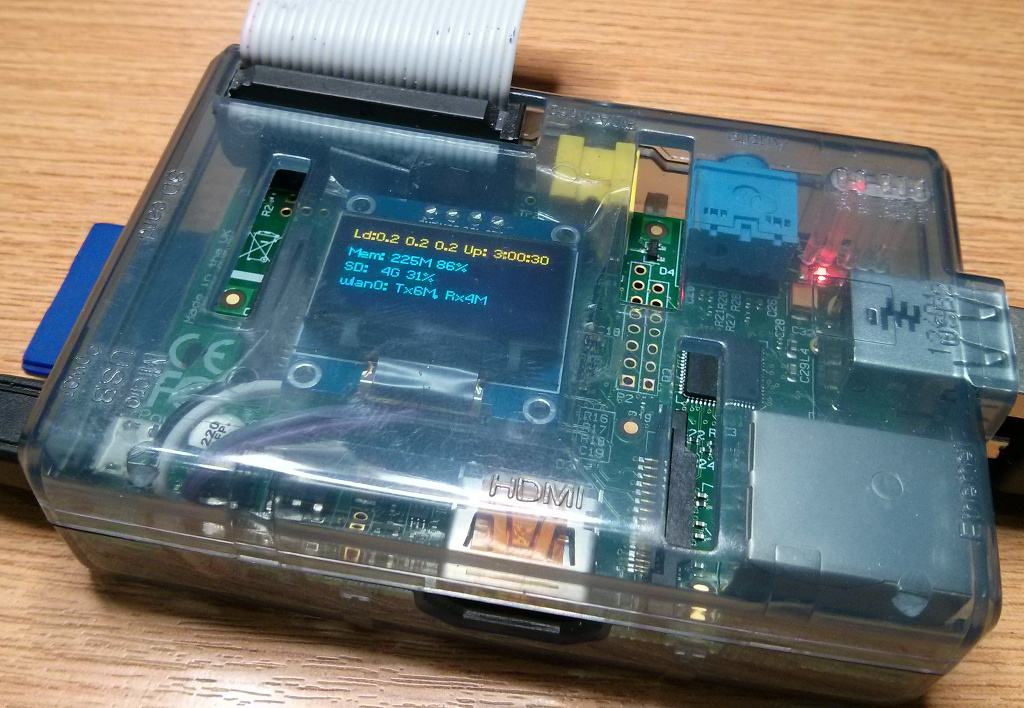

라즈베리파이에 장착된 ssd1351 oled display



GND - GND

VCC - 3.3v

SCL - 23, GPIO11, SPICLK

SDA - 19, GPIO10, SPIMOSI

RES - 22, GPIO25

DC - 18, GPIO24

CS - 24, GPIO8, SPICE0



리부트

- https://pypi.org/project/luma.oled/

luma.oled



인스톨

pip3 install luma.oled



example 설치

- https://github.com/rm-hull/luma.examples

GitHub - rm-hull/luma.examples: Companion repo for running examples against the luma.oled, luma.lcd, luma.led_matrix and luma.em

sudo usermod -a -G i2c,spi,gpio pi
sudo apt install python3-dev python3-pip libfreetype6-dev libjpeg-dev build-essential
sudo apt install libsdl-dev libportmidi-dev libsdl-ttf2.0-dev libsdl-mixer1.2-dev libsdl-image1.2-dev

git clone https://github.com/rm-hull/luma.examples.git
cd luma.examples

sudo -H pip3 install -e .

cd examples
python3 3d_box.py --config ../conf/ssd1351.conf
